These are varying notes taken throughout the 3D modelling section of BA1b, from both lectures and workshops with Chris.
4th Dec - Lecture
​
-
Going back to 3D modelling
-
Includes digital sculpting, retopology, UV mapping, baking and texturing
-
Always check resources on the VLE
-
Industry is only looking for the best so concentrate and work hard
-
Work can be stylised - heavily used in games like Overwatch​​
Vertex - a point in 3D space
Edge - 2 vertices joined
Faces - a closed set of edges
N-gons - polygons with 5+ edges (to be avoided as causes rendering issues)
​
-
Triangles are the simplest form of polygon
-
Quads are the preferred method of 3D modelling
-
All polygons can be turned into quads and tris by adding edges
-
Face normals display the direction of the face
-
Polygons only face one way
​
Display > polygons > face normals
Display > polygons > normals size
-
Manipulating vertex normals affect the appearance of shaded polygons
-
Hard edges - faceting, flat shading, hard or creased
-
Soft edges can emulate results similar to a mesh containing 247 times the geometry
-

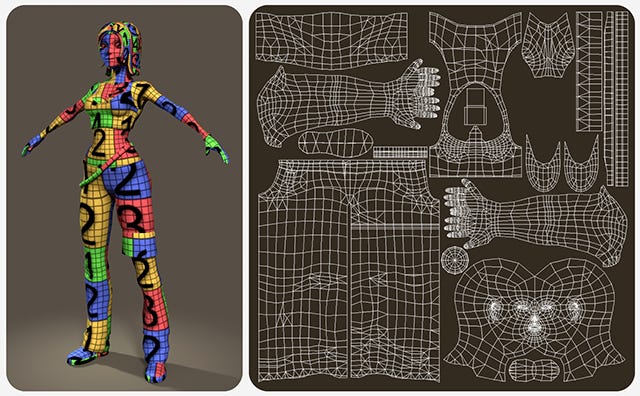

UV mapping unfolds a 3D object onto a 2D surface
-
Cutting 3D shapes creates seams for 2D space
-
U and V correspond to the X and Y axis - XYZ is UVW
-
0-1 space is used - aim to use as much of this space as possible
-
Symmetrical unwrap has the same texture on both sides, like a basic sword
-
Computer textures are all to the power of 2, for example 2048 would be 2k textures
-
Can use rectangular texture sizes, e.g. 512 x 1024 pixels
-
Substance Painter lets you choose
-
A texture file represents how a model will look, like colour or reflectivity
-
A material is multiple textures used to dictate how the model will look under light
-
Changing textures greatly affects how the material will look
-
We can pack textures for greyscale textures to conserve memory
PBR - Physically Based Rendering
​
Albedo Maps - the base colour input, or diffuse map
Ambient Occlusion Maps - control light elements on a surface (not technically 'real')
Normal Maps - simulate surface details transferred from a high-poly mesh via baking
Roughness Maps - control reflectivity of a surface
​
-
it utilises RGB channels to correspond with XYZ - Z is a flat colour in 2D space
-
metals or rock materials must be set to a value of 0 or 1 on roughness maps
-
a texture must contain black of white information
-
transitional material states fall between 0 and 1
-
0 (or black) is smooth, similar to a mirror
-
1 (or white) is rough and will create a very matte finish
-
Using a variation adds history and character to a model
7th Dec - Workshop
​
-
Go back over basics like mesh selection, hotkeys/shortcuts and object movement
​
Create new project file:
file > project window > new > find file > new folder
​
Creating tabs:
> channel editor -> left mouse click + drag
​
Scaling - R scales up and down via center square
-
Reverting back to a cube requires a scale of 1
​
Shelf:
edit > delete all by type > ctrl + shift > left click
​
-
Attribute editor allows you to govern scale, rotation etc.
​
Freeze transformations:
modify > freeze transformations > ctrl + shift > left click
​
-
freeze transformations allows you to take apart an object to edit it
​
Change pivot:
object mode, magnet tools
​
Snap to Point:
hold X to snap to grid
hold C to snap to curve
hold V to snap to point
​
Press D and move pivot center, press D again to confirm move
​
modify > centre pivot > ctrl + shift
​
Duplicate Mesh:
ctrl + D
create > polygon primitive > plane
​
-
Use tool kit for combining and separating meshes
-
Smooth tool allows you to add divisions
-
Extruding and bevels
-
Changing segments creates a softer shape
-
Depth changes concave & convex
​
Multi-cut tool:
hold ctrl for straight cut and edge selections
​
-
save as Maya ASCII
-
quality over technicality
-
block out original design
​
Deleting geometry:
ctrl + backspace
​
Polycount:
display > heads up display > polycount
11th Dec - Lecture
​
-
Go back over basics like mesh selection, hotkeys/shortcuts and object movement
​
Create new project file:
file > project window > new > find file > new folder
​
Creating tabs:
> channel editor -> left mouse click + drag
​
Scaling - R scales up and down via center square
-
Reverting back to a cube requires a scale of 1
​
Shelf:
edit > delete all by type > ctrl + shift > left click
​
-
Attribute editor allows you to govern scale, rotation etc.
​
Freeze transformations:
modify > freeze transformations > ctrl + shift > left click
​
-
freeze transformations allows you to take apart an object to edit it
​
Change pivot:
object mode, magnet tools
​
Snap to Point:
hold X to snap to grid
hold C to snap to curve
hold V to snap to point
​
Press D and move pivot center, press D again to confirm move
​
modify > centre pivot > ctrl + shift
​
Duplicate Mesh:
ctrl + D
create > polygon primitive > plane
​
-
Use tool kit for combining and separating meshes
-
Smooth tool allows you to add divisions
-
Extruding and bevels
-
Changing segments creates a softer shape
-
Depth changes concave & convex
​
Multi-cut tool:
hold ctrl for straight cut and edge selections
​
-
save as Maya ASCII
-
quality over technicality
-
block out original design
​
Deleting geometry:
ctrl + backspace
​
Polycount:
display > heads up display > polycount
11th Dec - Lecture
​
-
Go back over basics like mesh selection, hotkeys/shortcuts and object movement
​
Create new project file:
file > project window > new > find file > new folder
​
Creating tabs:
> channel editor -> left mouse click + drag
​
Scaling - R scales up and down via center square
-
Reverting back to a cube requires a scale of 1
​
Shelf:
edit > delete all by type > ctrl + shift > left click
​
-
Attribute editor allows you to govern scale, rotation etc.
​
Freeze transformations:
modify > freeze transformations > ctrl + shift > left click
​
-
freeze transformations allows you to take apart an object to edit it
​
Change pivot:
object mode, magnet tools
​
Snap to Point:
hold X to snap to grid
hold C to snap to curve
hold V to snap to point
​
Press D and move pivot center, press D again to confirm move
​
modify > centre pivot > ctrl + shift
​
Duplicate Mesh:
ctrl + D
create > polygon primitive > plane
​
-
Use tool kit for combining and separating meshes
-
Smooth tool allows you to add divisions
-
Extruding and bevels
-
Changing segments creates a softer shape
-
Depth changes concave & convex
​
Multi-cut tool:
hold ctrl for straight cut and edge selections
​
-
save as Maya ASCII
-
quality over technicality
-
block out original design
​
Deleting geometry:
ctrl + backspace
​
Polycount:
display > heads up display > polycount
14th Dec - Workshop
​
During this session we focused on learning the basics of ZBrush and importing low poly models from Maya to work on for task 1.
​
-
​In Maya select in object mode and export selection as an obj.
-
In ZBrush select the 3D sphere and go to import, find the file and open
-
Left click and drag to create
-
Hit edit to begin sculpting
​
Manoeuvring:
-
alt+left click+let go of alt+ drag = scaling
​
Subtool shows what is with which layer
​
-
Go to geometry>divide
-
The history bar is at the top
-
delhigher deletes highest amount of subs
-
smth off
-
Top right for save as
-
store morph target freezes points
-
When importing new object make sure existing object is not selected
-
Dynamesh for more effective resolution
-
To work on parts individually subtool > split > group split
​
After this we were able to play with the software to discover the various tools and materials.
​
​
​​
8th Jan - Retopology Lecture
​
​Restrictions for sign:
-
Maximum texture resolution is 2048x2048
-
Don't overcomplicate model
-
Triangle limit is 4000
-
Quality over quantity
-
Polished simple models are better than elaborate unfinished ones
​
Retopology and decemation allows you to create new topology and significantly reduce the amount of polygons used to save memory.
​
-
masking can preserve specific areas of the model before decemation
-
Zplugins > decemation master
-
Between 10k and 50k points is comfortable
-
Keep high poly mesh seperate from decimated mesh for baking
-
Decimate meshes individually
​
Check the VLE for resources!
​
-
Zplugin > decimation master
-
Pre processing current
-
Leave at 20%
-
Decimate current
-
Preprocess agian
-
Decimate again
-
Export and label as decimated_objectname
​
When exported into Maya:
-
right mouse click object
-
Make Live
-
Quad draw tool
-
Create polygons by selecting points
-
Hols shift to create polygon
-
Hold tab drags out shape
-
Click magnet to deactivate live surface
-
Hold shift to relax
​
Quads are preferable when creating the mesh but triangles are fine: NO N-GONS!
​
11th Jan - Workshop
​
-
Press F to frame within the scene (Maya)​
Never move, scale or rotate the model once you have imported the decimated mesh to Maya
​
Display > heads up display > polycount
​
-
Within the layers V controls visibility
-
P is animation play back, turn it off
-
Third box is a template
-
R is reference, doesn't allow you to do anything, locks it
-
Rename all layers, spaces are allowed
-
Clear extra verts once finished quad drawing
-
Hold tab to extend an edge
-
Verts snap when you move them together
​
